RS232 Interface 3 Track Magnetic Card Reader Writer Manual Swipe
RS232 Interface 3 Track Manual Swipe Magnetic Stripe Card Reader Writer
Overview:
RS232 Interface 3 Track Manual Swipe Magnetic Stripe Card Reader Writer is a card reader writer for reading and writing magnetic stripes. It is commonly used to transfer data between computer systems and supports a variety of card types such as credit cards, debit cards, proximity cards, etc.
The device communicates with computers or other devices through the RS232 interface, can automatically identify the card type, and perform corresponding operations. It supports reading and writing of 3 tracks, which improves the efficiency of reading and writing cards.
manual swipe magnetic stripe card reader writer is usually used in financial institutions, hotels, airports and other places for identity verification, access control, point management and other functions.
Specification:
| Electrical |
| Power requirements | ‘+24VDC +/- 5% |
| Consumption | Typical 350mA Max. 600mA plus for each writing track |
| Power supply | External switching power 9V/2.5A |
| Communication Interface | USB |
| Ripple | 50mVp-p or less |
| Dielectric strength | 500 VDC for 1 minute |
| Performance |
| Track | Track1 | Track2 | Track3 |
| Recording density | 210 BPI | 75 BPI | 210 BPI |
| Record characters | 52 Characters | 25 Characters | 73 Characters |
| Coercive force | Read/write 300-4000 oe Mag.card |
| Card thickness | 0.76-1.2mm |
| Read speed STD card Jitter | ’ +/-15% Amp. 60% |
| Write speed | 5-30ips |
| Write jitter | Interval < +/- 10%, Sub-interval < +/- 12% |
| Error rate | Read < 0.5% |
| | Write < 0.8% |
| Head life | Min. 1000K swipes for both read/write head |
| Mechanical |
| Body material | ABS 94V-0 |
| Weight | Approx. 1.4kg |
| Dimension | 212L x 64W x 63H mm |
| Swipe Manual | single direction |
| Environments |
| Operation humidity | ‘-10 to 55oC, 10 to 85% |
| Storage humidity | ’-30 to 70oC, 10 to 90% |
| Safety Approval | Rating FCC , CE , UL, cUL |
Feature:
Features of RS232 Interface 3 Track Manual Swipe Magnetic Stripe Card Reader Writer include:
Support multiple card types: This card reader can read and write multiple card types, such as credit cards, debit cards, proximity cards, etc., thus meeting the needs of different users.
Automatic identification of card types: The card reader can automatically identify card types and perform corresponding operations, thereby improving work efficiency.
Support Reading and Writing of 3 Tracks: This card reader/writer supports reading and writing of 3 tracks, which improves the efficiency of reading and writing cards.
Communication via RS232 interface: The card reader/writer communicates with computer or other devices via RS232 interface, which is convenient to integrate it into the system.
Manual card swiping: The card reader supports manual card swiping, and the user can read and write the card by manually swiping the card.
In conclusion, RS232 Interface 3 Track Manual Swipe Magnetic Stripe Card Reader Writer is a powerful and widely applicable card reader writer that can meet the needs of different users.

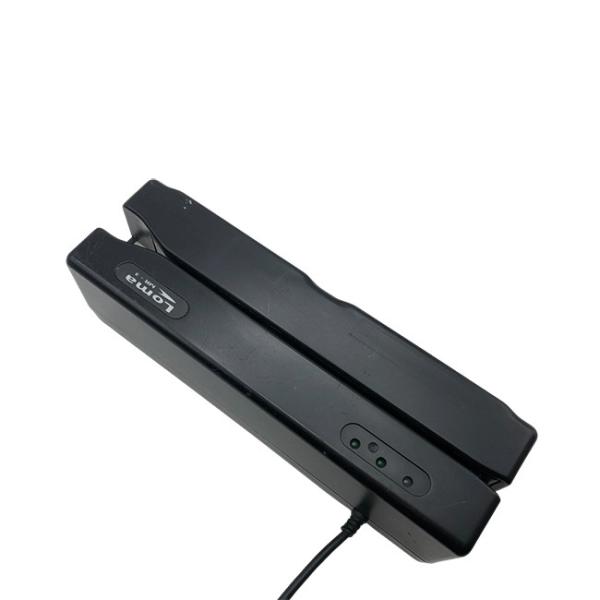

Product Images:
